Jacobsen
Jacobsen AR530 Rough Mower
– TRUEDECK™ FOR PRECISE CONTOUR FOLLOWING – OUTSTANDING CUT APPEARANCE – QUICK AND EASY DECK ADJUSTMENT – RELIABLE KUBOTA ENGINE
Overview

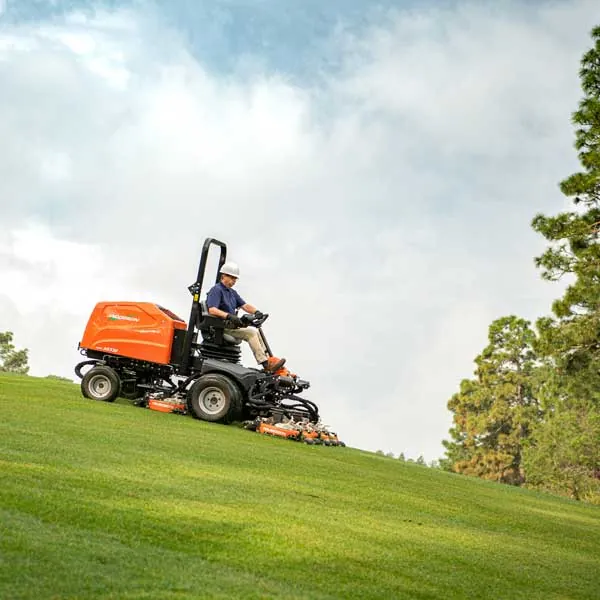

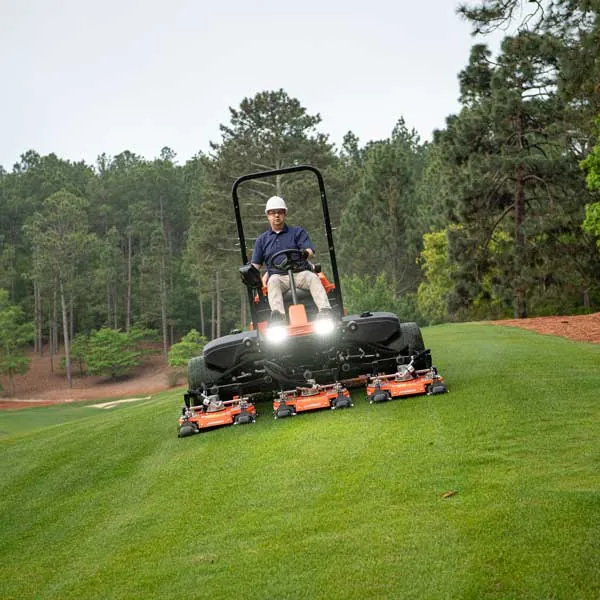

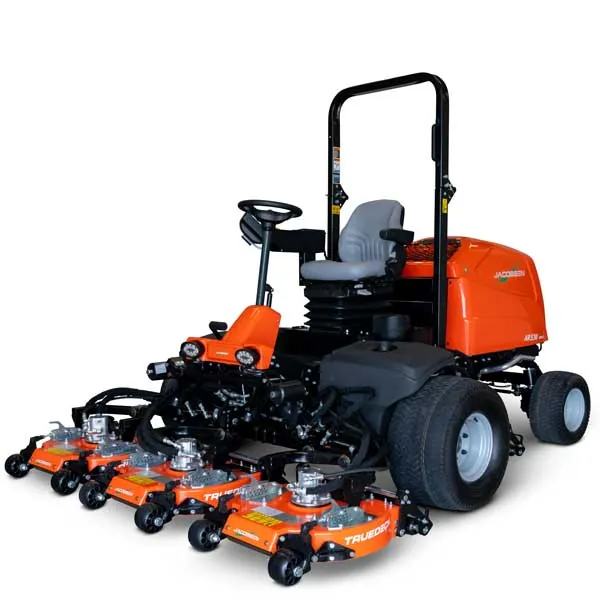

Jacobsen AR530 Contour Rotary Mower
The completely redesigned AR530 contour rotary mower is built to give you the best. Developed with TRUEDECK™ high-performance contour cutting units, with best-in-class clipping dispersal and outstanding after-cut appearance, it climbs smoothly over hills and contours and eliminates the risk of scalping.
The AR530 offers quick and easy deck adjustment and a reliable Kubota® engine.
Technical data
| Drive | SureTrac II™ AWD, a unique parallel hydrostatic system, servo-controlled variable-displacement hydraulic drive; four high-torque wheel motors; 2WD transport and reverse |
|---|---|
| Working width | 2.42 m |

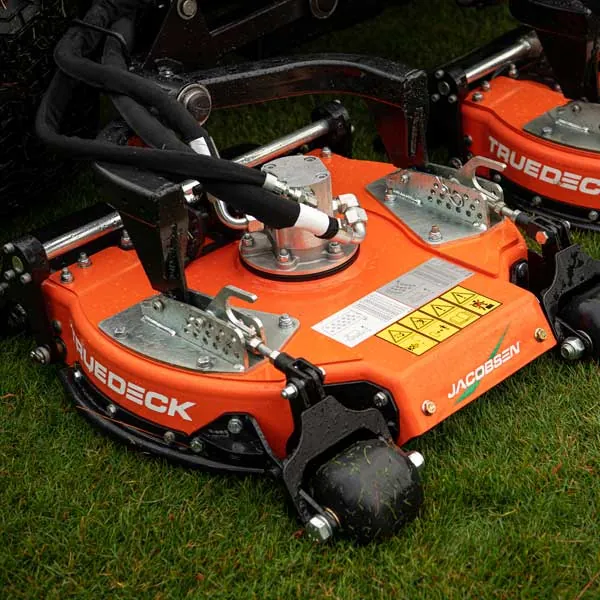

| Cutting units | 5 x TRUEDECK™ 23” (58.4 cm) rotary cutting units. Fitted with rear discharge chute and smooth rear roller (mulch deflector, non-marking rear roller and rear roller scraper available) |
| Blade material | 5×22.4″ (56.8 cm) heat-treated aluminium combination blades |
| Steering | Rear-wheel, hydrostatic power steering with tilt-adjustable steering column |
| Mowing speed | 11.3 km/h |
| Weight | 1,565 kg, fully fuelled |
