Ransomes HR 380 – THE VERSATILE CHOICE IN TURF CARE

– Versatile and agile – Easy maintenance and operation – Ideal for less frequently cut grass

Overview

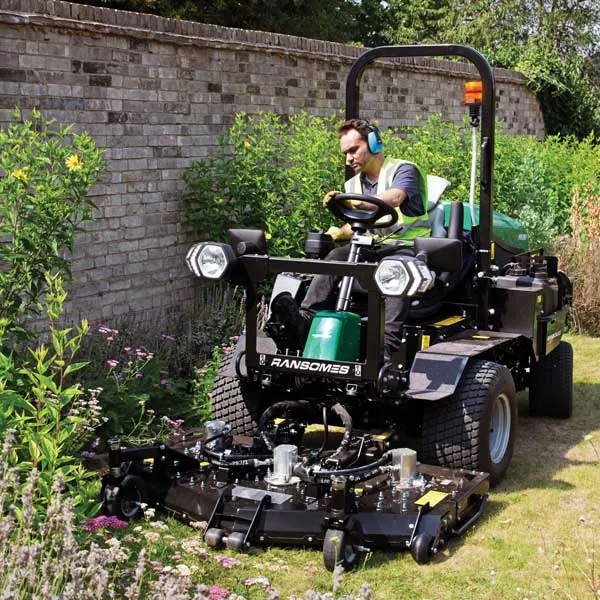

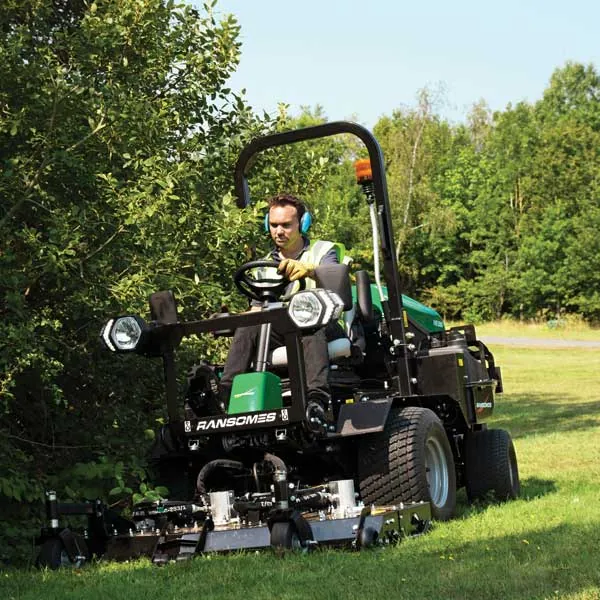

Ransomes HR 380

With the efficient, powerful and reliable EU Stage V Kubota engine, you work with a lower environmental impact. Low-maintenance features, with fewer moving parts and significantly fewer lubrication points, make your job easier. Increased efficiency comes from easily interchangeable units, reliable hydraulics and straightforward on-board diagnostics.

Technical Data

| | ROTARY MOWER | FLAIL MOWER |
| --- | --- | --- |
| Diesel engine | Kubota 37.5 hp (28 kW) diesel engine EU Stage V (EPA CARB Tier 4F) | Kubota 37.5 hp (28 kW) diesel engine EU Stage V (EPA CARB Tier 4F) |
| Drive | Permanent four-wheel drive in parallel-series configuration, with reverse engagement when required | Permanent four-wheel drive in parallel-series configuration, with reverse engagement when required |
| Working width | 1.52 m (60″) and 1.83 m (72″) decks with rear discharge | 1.52 m (60″) and 1.83 m (72″) decks with rear discharge |
| Height of cut | 25 mm – 115 mm | 25 mm – 115 mm |
| Blades | 3 x 21″ (533 mm) or 25″ (635 mm) | 3 x 21″ (533 mm) or 25″ (635 mm) |
| Deck drive | 3 x individual, maintenance-free, hydraulically self-lubricating cutting motors | Hydraulic motor with mechanical double V-belt |
| Transport speed | 25 km/h | 25 km/h |
| Weight (without fuel) | 1,238 kg with 1.52 m deck | 1,336 kg |
