Ransomes MT 383 COMFORT AND EFFICIENCY COMBINED IN ONE MOWER

• Efficient & proven Magna cylinder units • Precise fingertip lift/lower control of the units • Powerful yet clean Stage V 37.5 hp Kubota engine • Reversible fan for all-day productivity • Easily accessible engine bay for quick, easy servicing

Request a quote

Overview

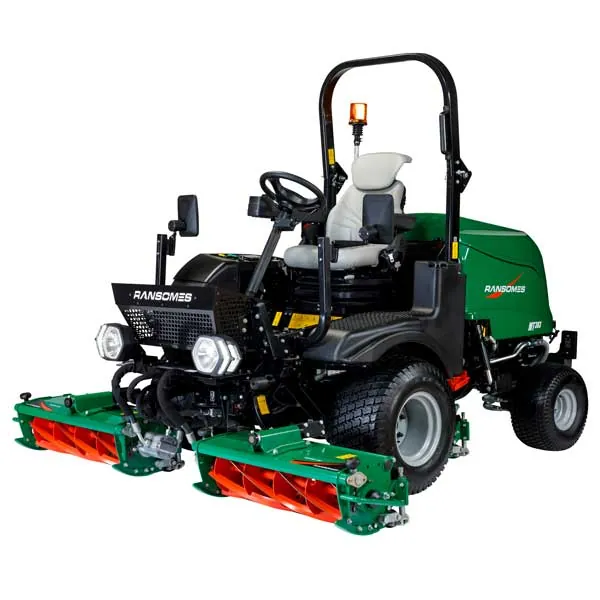

Ransomes MT 383 Large-Area Cylinder Mower

The new MT 383 large-area cylinder mower is a comfortable and efficient mower with an unmatched finish. It features on-board diagnostics, optional TST slope stabilisation, a Stage V 37.5 hp Kubota diesel engine, and Ransomes' proven Magna cutting cylinders. With road-safe components, the operator is well positioned even when driving on the road.

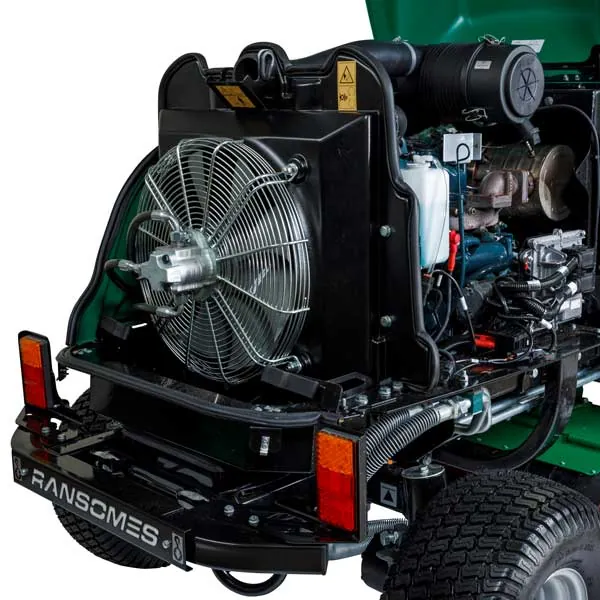

Electronic unit locking makes safe transport easy, and optional LED/halogen lighting, as well as side mirrors, provide good visibility on the road. A temperature-controlled reversible fan
and a 2-zone air intake keep all systems cool and allow maximum productivity even on hot days. Our SureTrac™ four-wheel drive delivers unmatched traction even in difficult terrain.

Technical Data

| | |
| --- | --- |
| Diesel engine | Stage V 37.5 hp (28 kW) Kubota™ engine |
| Tank volume | 77.1 litres |
| Drive | Travel drive: Hydrostatic, 4WD parallel cross-series system forward, engageable 4WD in reverse |
| Transport width | 1.68 m (66″) with Magna units at 25 mm (1″) height of cut |
| Height of cut | 12.7 – 61.0 mm |
| Cutting cylinder | 25.4 cm (10″) diameter with 4-, 6- or 8-blade cutting cylinder |
| Lift & lower | High-performance steel construction with tool-free cylinder and bedknife adjustment |
| Transport speed | 25 km/h forward, 12 km/h reverse |
| Weight (with fuel) | With ROPS: 1,550 kg with 6-blade Magna units. With cab: 1,722 kg with 6-blade Magna units |
| Options & accessories | Beacon; LED/halogen lighting; rear-view mirror; air-suspension seat; transport basket; TST slope system; noise-dampening cab with air conditioning, heating, heated windscreen, air-suspension seat and 2 beacons |
